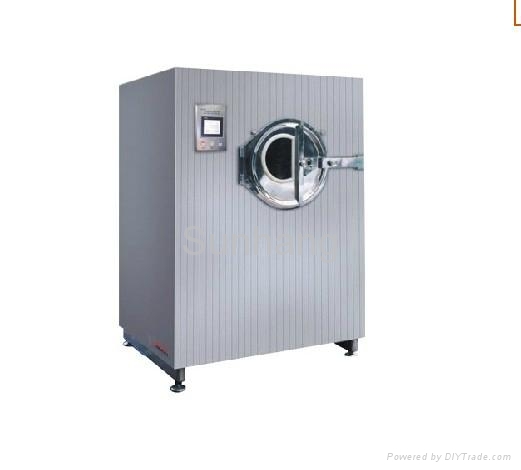

BG-150 High Efficiency Intelligent Film Coating Machine

  • BG-150  High Efficiency Intelligent Film Coating Machine
  • BG-150  High Efficiency Intelligent Film Coating Machine
  • BG-150  High Efficiency Intelligent Film Coating Machine
  • BG-150  High Efficiency Intelligent Film Coating Machine
  • BG-150  High Efficiency Intelligent Film Coating Machine
Model No.︰BG-150
Brand Name︰Sunhang
Country of Origin︰China
Unit Price︰US $ 25580 / set
Minimum Order︰1 set
Share on:

 Total 11 Related Items
Prev45678Next

Product Description

BG-Series High Efficiency Intelligent Film Coating Machine





Product Description

High Efficiency Intelligent Film Coating Machine was developed on the imported equipment in 1992 and has been placed on the list of the Sin-tech Spark Project of Zhe jiang. In 1995, this product passed the provincial level technical appraisal of new products, was awarded the Scientific and Technological Improvement. Award and also recommended as the Brand -new and Quality High-tech Product and National New P\product of 1995. In July 2002, it passed GMP appraisal by State Economy & Trade Committee and the certification of EU. Until now it has been exported to such regions as Europe, Australia, South America, Middle East, Middle Asia, south Asia and Southeast Asia, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc.

And it has such characteristics as good appearance in design, high efficiency, low energy consumption and small floor area, etc.

Model: BG-1000E; BG-600E; BG-400E; BG-300E; BG-150E; BG-80E; BG-40; BG-10

2.Technical parameters

Items \ Model

BG-40

BG-80

BG-150

BG-400

Max. tablet volume

40Kg / time

80Kg / time

150Kg / time

400Kg / time

Sugar coating drum dia.

F750mm

F930mm

F1200mm

F1580mm

Feed inlet dia

F340mm

F380mm

F475mm

F475mm

Sugar coating drum speed

0-21r.p.m

0-19 r.p.m

0-16 r.p.m

0-13 r.p.m

Host machine motor power

1.1 kw

1.5 kw

2.2 kw

3 kw

Exhaust cabinet motor power

2.2 kw

3 kw

5.5 kw

7.5 kw

Exhaust blower air flow

3517m3/h

5268 m3/h

7419 m3/h

10000 m3/h

Hot air cabinet motor power

0.75 kw

1.1 kw

1.5 kw

1.5kw

Air heater air flow

1285 m3/h

1685 m3/h

2356 m3/h

2356 m3/h

Air heater temp.-adj. range

~ 80

~ 80

~ 80

~ 80

Hot air cleanness level

100000 level

100000 level

100000 level

100000 level

Syrup pump or lobe pump motor power

0.37kw (0.55kw)

0.37kw (0.55kw)

0.37kw (0.55kw)

0.37kw (0.55kw)

Silicon rubber hose

F 9~16mm

F 9~16mm

F 9~16mm

F 9~16mm

External dimensions of host machine

1100x850x1470

mm

1370x1050x1700

mm

1730x1320x2030

mm

2050x1670x2360

mm

Host machine weight

500

600

850

1000

External dimensions of hot air cabinet

900x800x1935

mm

900x800x1935

mm

900x800x2030

mm

900x800x2150

mm

Hot air cabinet weight

400

450

480

480㎏

External dimensions of exhaust cabinet

820x720x1750

mm

900x820x1850

mm

950x950x1950

mm

1050x1050x2000

mm

Exhaust cabinet weight

450

500

550

550

External  condition





Clean

Air

Pressure

³0.4Mpa

³0.4Mpa

³0.4Mpa

³0.4Mpa

Air consump.

0.4m3 /min.

0.7m3 /min.

1m 3/min.

1.5 m3 /min.



Water

source

Pressure

³0.15Mpa

³0.15Mpa

³0.15Mpa

³0.15Mpa

Pipe dia.

1’’

1’’

1&1/2’’

1&1/2’’



Steam

heating

type

Steam

Pressure

³0.4Mpa

³0.4Mpa

³0.4Mpa

³0.4Mpa

Air consump.

80/h

80/h

80/h

80/h

Power source

3 phase and 5 lines

5 kw

3 phase and 5 lines

6 kw

3 phase and 5 lines

10 kw

3 phase and 5 lines

14 kw



Electric heating  type





Power source



3 phase and5 lines

26 kw



3 phase and 5 lines 32 kw



3 phase and 5 lines

38 kw



3 phase and 5 lines

39 kw
