BY -1000 Sugarcoating Pan

  • BY -1000 Sugarcoating Pan
  • BY -1000 Sugarcoating Pan
  • BY -1000 Sugarcoating Pan
  • BY -1000 Sugarcoating Pan
  • BY -1000 Sugarcoating Pan
Model No.︰BY-1000
Brand Name︰SHPM
Country of Origin︰China
Unit Price︰US $ 1450 / set
Minimum Order︰1 set
Share on:

 Total 12 Related Items
Prev89101112Next

Product Description
BY Series Sugarcoating Pan

The machines use for average coating and polishing of formed pill in pharmaceutical industry. It can be also used for make pill or coating in foodstuff.
Working Principle: Make the sugarcoating tablet roll and slide in the pan through the pan rotary clockwise. And then scrub and mill the sugarcoating tablet to make the core smear is even. At the same time put into the hot wind to eliminate the water in the surface of tablet, and then get the qualified sugarcoating tablet.
(The variable adjusting speed Coating Pan can be done by customer’s requirements).



Main Technical Specifications:




Model
BY500
BY600
BY800
BY1000
Dia. of coating pan(mm)
500
600
800
1000
Rotary speed of coating Pan(rpm)
40
40
28
28
Main motor (KW)
0.55
0.55
1.1
1.1
Electric heating power(W)
500
800
1000
1000
Drum wind motor power(W)
60
60
250
250
Production capacity(kg/batch)
10
15
30-50
50-70
Weight(kg)
115
120
240
250
Overall size(L*W*H) (mm)
700*700*880
700*700*1100
925*900*1500
1100*1100*1600
Outer heating power(W)
500
1000
1000*2
1000*2

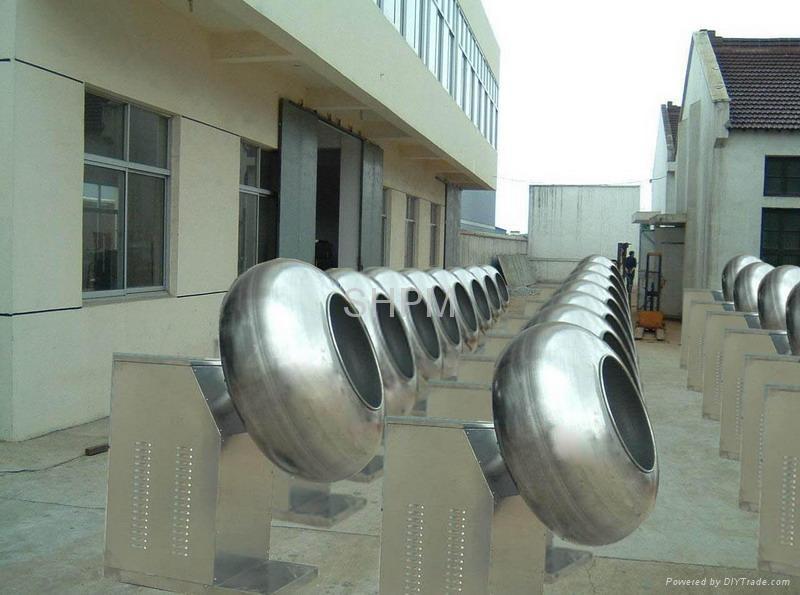

Product Image
