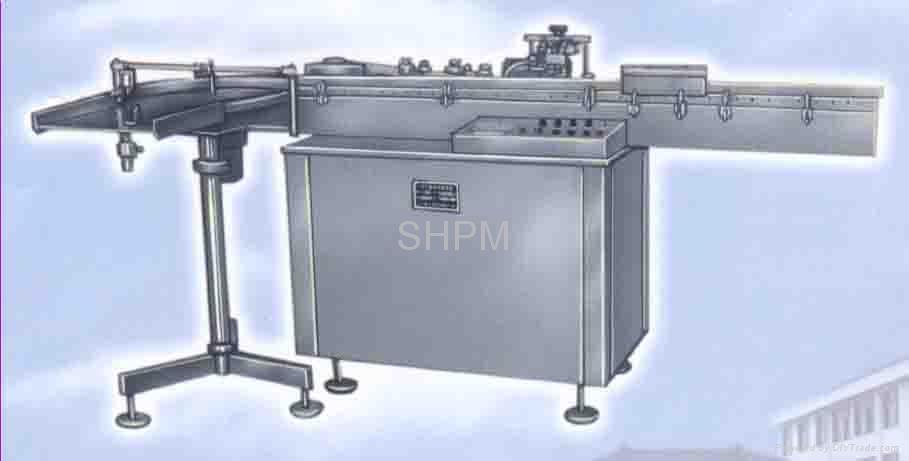

KTN- A Non-drying Sticker Labeling Machine
KTN-A non-dryer sticker labeling machine is improved from the same type at home and abroad. It can auto change label, auto check label, inspect bottle in-position, applies to label on cylinder straight tube bottle and plastic bottle. It’s ideal equipment for pharmacy, food, chemical industry to label non-drying sticker.
l Small volume, operate easily, convenient to maintain.
l Single machine can produce or form a complete set with production line.
l Auto finish labeling, typing procedure by computer-set and photo-electricity-control.
l Auto display and count.
l Won’t deliver label, without bottle, auto stop as no label or stripe broken.
l Auto align label, auto type lot number.
l Hot wave type, handwriting is clear.
l Design according to the requirements of GMP.
Main Technical Parameter :
l Bottle size: Φ12-Φ100mm
l Label size: maximum size of single label: 100*50mm
maximum outside diameter, of label dish: Φ350mm
center hole of label dish: Φ75mm
l Qualified rate of labeling: ≥99%
l Power supply: 220V 50Hz
l Power consumed: 0.3kw
l The pressure of compressed air equipped: 0.4-0.6Mpa.
l The quantity of consumed compressed air equipped: 0.1m3/min
l Weight: 100kg
l Overall dimension: (L*B*H)
Bottleneck Φ12-Φ22: 120-150 bottles/min
Bottleneck Φ25-Φ35: 100 bottles/min
Bottleneck Φ35-Φ56: 80 bottles/min
Bottleneck Φ56-Φ100: 60 bottles/min
