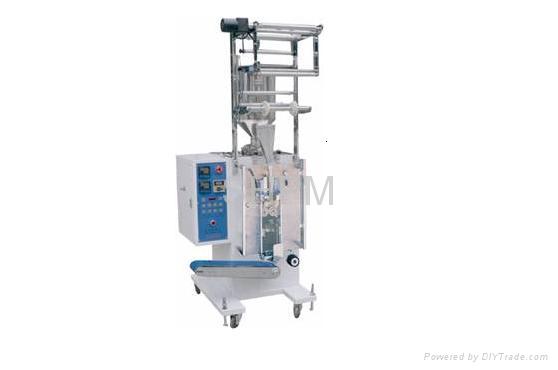

DXDF140E Intelligent Packing Machine

Feature:
  The process of measuring, bag-making, filling, sealing，printing and cutting can be done automatically.
  The packaging machine can pack many kinds of material such as grain, powder, liquid and tablet, etc.

Purpose:

  Powder kind: Milk powder, bean powder, condiment, humid pesticide powder, etc.

Packaging Material:

  Various Laminate Film，for example: Polypropylene/Polythene，Polyester/Aluminium foil/Polythene，Polyester/Aluminium-plating/Polythene, Nylon/Polythene，Polyester/Polythene，etc.

Technical Features:

  1. It is PLC-controlled with touch panel and digital display to achieve reliable and easy operation.

  2. Step motor is applied in bag-making system with high precision.

  3. With automatically intelligence tracking system, it can get rid of fake color mark, self-positioning and length-fixing automatically.

  4. Horizontal and vertical sealing device achieves sealing respectively. Bag-pulling and rollers are between horizontal sealers and vertical ones.

  5. Cutting while sealing. NO breaking.

  6. It is equipped with side-opening shield and paper-conveying is controlled by detecting mechanism of third class.

  7. With electric calefaction mechanism, the temperature is controlled intelligently.

  8. Filling and measuring mechanism is new entirely.

Technical Parameter:
  Power: AC220V/380V/50HZ three-phase five-wire system；
  Pouch length: (L)50～205 mm；
  Pouch width:(W)40～140 mm；
  Packaging speed: 28～50 Bag/min；；
  Filling Capacity：40～400 ml；

  Seal Style：3-side；
  Power Consumption: 1.8 Kw；
  Measuring Method: Auger；
  Weight: 235 Kg
  Dimension: 995 mm（L）X 800 mm（W）X 1975 mm（H）

Optional devices:

  1. The above machine may be equiped with hot stamp imprinting machine.

  2. It is choice to be shaking matter-delivering mechanism.

  3. The machine that has special bag-size or measuring requirement can be devised and produced specially.
